EuroVector
EuroVector design, manufacture and sell EA3000 Elemental Analyser for CHNS-O determination in a variety of applications.
Callidus, the most advanced dedicated SW for Elemental Analysis, fully automates the system from Sample Table to download of instrument parameters to results printout, providing instrument control, data acquisition, reprocessing and reporting.
All instruments are based on the innovative patented TurboFlash™ combustion technology, allowing for pressurized Oxygen injection independently from carrier gas.
EA3000 Series key features:
- FASTEST ANALYSIS TIME. Simultaneous CHNS is performed in 5mins.
- FLEXIBILITY. The instrument is available for all combinations of CHNS+O, allowing to change configuration in few minutes.
- SAMPLE SIZE & DETECTION LIMIT. The autosampler accommodates samples as high as 1g for mineral material and as low as few mg level of organic compounds. The lowest absolute detection limit is outstanding 0.2µg
- COST EFFECTIVE. EA3000is cost effective for the lowest catalyst & gas consumption. It operates with unprecedented reliability & down time.
PRODUCTS
CHNS-O ELEMENTAL ANALYZER
EA3000 Series are compact, fully automatic instruments for the most exacting determination of CHNS and O.
The Series is based on TurboFlash™ Combustion Technology, a patented principle to inject a selected pressurized oxygen volume independently from carrier gas flow. The innovation represents aquantum leap in the state of the art of well known Dynamic Flash Combustion Principle.
EuroVector deliver instruments tested against "3Q" Qualifications.
EuroVector provide instrument configuration as well as analytical protocol including layout, instrument parameters and a number of other suggestions to achieve accurate results in a variety of applications.

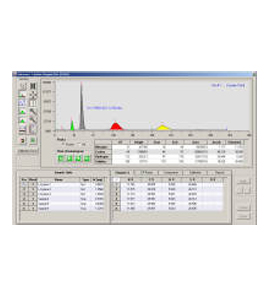

Callidus SW
Is the most advanced dedicated SW for Elemental Analysis, representing a major step ahead for completeness and usability.
The simple structure delivers a truly intuitive tool allowing the operator to use it from day one.
It offers elegant solutions improving instrument performances.

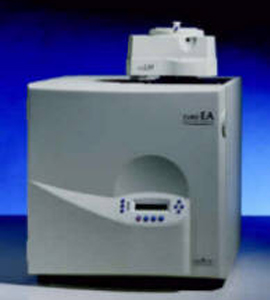

N-PROTEIN ANALYZER
Is a compact, fully automatic, fast analyzer for very accurate N-Protein content determination. The system allows for a straight-forward operation through Callidus, the most advanced dedicated SW for EA.
The system, in 90 seconds, automatically enters sample weights from the balance, downloads pre-set parameters, activates the AutoSampler, controls the entire combustion process, acquires and handles data from a sample sequence, and reports results in one of several report formats.
The N-Protein Analyzer sets new standards for maximum accuracy and simplicity in Nitrogen Protein % determination.
The system, taking advantage from the patented TurboFlash ™ Combustion Technology, allows for user selection of Pressurized Oxygen Volume injection for improved combustion in difficult to burn matrices.
Sample sizes range is from 10-40mg up to 100mg or more, limiting ash generation and maximizing sustained operation without user intervention.
Introduction of Ash & Residue Removal Device, allowing for ash elimination in a matter of seconds without extracting the Combustion reactor from the Furnace, fully exploits the catalysts life.
AOAC compliance. The EuroVector System meets AOAC recommendations for combustion method for N-Protein Analysis.
Flexibility of Protein Analyzer. The instrument can be converted in any of the classical CHNS-O models using different configuration kits.
CONSUMABLES:
Catalyst & Consumables
Reference Standard Materials (RSM) EuroVector provides a comprehensive list of RSM with different % content in each element
Soil Reference Standard
Uniquely EuroVector supply Reference Standard Materials for Soils in which standardized synthetic matrices are used. Selecting the soil standard closer to the expected soil element concentration will provide superior accuracy.
EuroVector Isotope Grade Consumables
EuroVector is a leading company for interfacing EA to IRMS and provides a line of Isotope Grade (IG) Catalysts, Reagents, Reference Standard Materials, High Performance Reactors and GC Columns. With its unique range of Zero Blank AutoSamplers, EA and HT-PyrOH Systems upto 1500°C, EuroVector drive CF-IRMS across new frontiers in continuous flow applications. The Label on the right identifies EuroVector Isotope Grade consumables.
