Gram
Refrigerators and freezers for the life sciences
Most people think a fridge and a freezer is a freezer. Keeping things cold isn't exactly rocket science, is it? But in the competitive commercial world of bioscience, there can be huge investments riding on the speed, dependability and success of research work, R&D and biomedical breakthroughs.
High- performance refrigeration and freezer equipment is therefore essential for keeping sensitive, delicate material within meticulously controlled temperature storage parameters. Gram commercial is one of the world's prime manufacturers of high performance refrigeration and freezer equipment for discerning professional users. It is perfect for life science applications sush as laboratories, hospitals, pharmaceutical users. It is perfect for life science applications such as laboratories, hospitals, pharmaceutical and industrial applications, where specifications for temperature sensitive items are at their highest. We develop, manufacture and market this technology for customers in Europe, the Middle East and Asia, operating from our administration and manufacturing facilities in Denmark. This is all backed by subsidiaries in the UK, Germany, the Netherlands, France, Sweden and Norway and distributors throughout the world.
THE BIOLINE ADVANTAGE
Gram Commercial have designed, fine -tuned and optimised all the details in BioLine biostorage cabinets to ensure:
- Maximum Reliability
- Stringent Control
- Optimised Air Flows
- A Responsible Environment Profile(Full ATEX Compliance)
- Easy Customization
- Rapid Support From Trained Staff
PRODUCTS

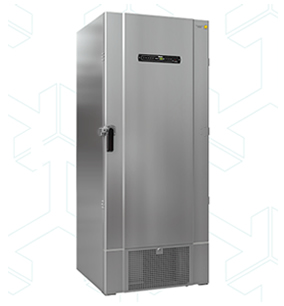

BioUltra
BioUltra ultra-low temperature biostorage cabinets are designed and built to last, ensuring maximum ROI as well as effective use of resources. They are meticulously engineered to use the least possible energy to greatest possible effect.
Temperature range : UL -60/-86 ºC
Litres: 570
Features:
- Cascade refrigeration system
- Vacuum insulated panels
- Insulated inner door
- Low noise level
- Low power consumption

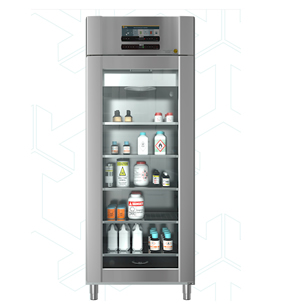

ExGuard
The ExGuard line offers a safe and viable storage solution for items potentially emitting noxious, malodorous and / or explosive atmosphere. With external and internal ATEXCat. 3 Zone 2 compliance, integrated extraction controller, user safety features and failsafes- ExGuard simply needs to be connected to an existing ventilation system and power supply to deliver a market benchmark for practical obtainable safety in the workplace.
Temperature range : ER -2/+86 ºC
Litres: 614
Features:
- Acoustic/visual temperature alarms
- Voltage - free contact
- Electromagnetic safety lock Reference senor
- Hazardous atmosphere extraction mechanism
- Ambient air intake

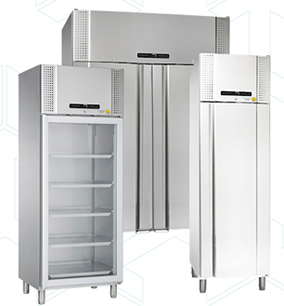

BioPlus
The BioPlus range is designed for the storage of the most delicate biomaterials, in situations where even tiny fluctuations in conditions inside the storage cabinet can have a serious effect on the contents. In terms of performance, these units are designed to provide the very best results even under exceptional conditions..
Temperature range :
- ER -2/+20 ºC
- RF -25/-5 ºC
- EF -35/-5 ºC
Litres:
- 614
- 500 - 1400
- 600 - 660
Features:
- Acoustic/visual temperature alarms
- Voltage - free contact
- Self closing door with pedal
- Forced air distribution

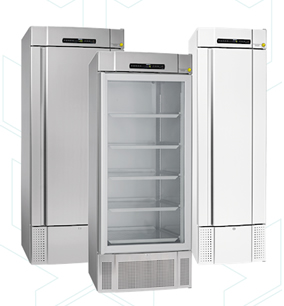

BioMidi
The BioMidi cabinet is designed to meet the majority of biomaterial refrigeration and freezer requirements, with very few limitations. The specifications include the major features from our top-of-the-range BioPlus model, making it the ideal when the ability to maintain stable temperatures is required.
Temperature range :
- ER -2/+20 ºC
- RF -25/-5 ºC
- EF -40/-5 ºC
Litres: 425 - 625
Features:
- Acoustic/visual temperature alarms
- Voltage - free contact
- Self closing door with pedal
- Forced air distribution

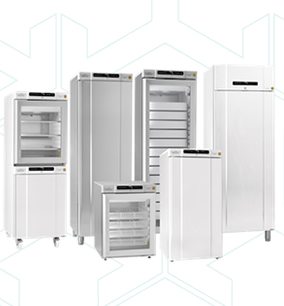

BioCompact II
This is a compact refrigeration or freezer cabinet for a wide range of biostorage purposes where the prime focus is on dependability. The BioCompact II provides you with significantly better performance than any other cabinets in this segment for storing ordinary biomaterial under stable conditions.
Temperature range :
- ER +2/+20 ºC
- RF -25/-5 ºC
Litres: 125 - 583
Features:
- Acoustic/visual temperature alarms
- Voltage - free contact
- Self closing door with pedal
- Forced air distribution

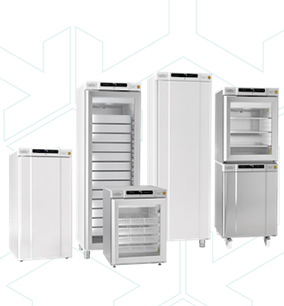

BioCompact
BioCompact is a general-purpose refrigerator/freezer cabinet for basic biostorage purposes where the focus is on reliability and refined performance. These units are ideal if you need refrigerated and / or deep-freeze biostorage that is more reliable and consistent than a traditional household fridge. The small footprint of this design also makes it the perfect biostorage solution when space is limited.
Temperature range :
- ER +2/+20 ºC
- RF -25/-5 ºC
Litres: 125 - 346
Features:
- Flexible interior layout
- Voltage - free contact
- Forced air distribution

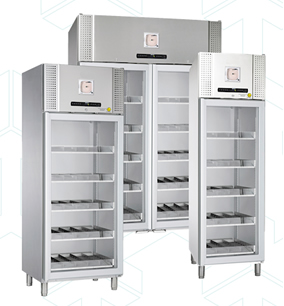

BioBlood
The BioBlood design is a special version of our top-of-the-range BioPlus cabinet,customised to meet the special requirements associated with the controlled storage of blood, plasma and blood-related products. These advanced cabinets have been developed exclusively for blood storage in order to help ensure high, consistent quality at every stage from donor to transfusion.
Temperature range :
- BR +2/+6 ºC
- BF -25/-5 ºC
- PF Plasma -35/-5 ºC
- PF Plasma - 40/-5 ºC
Litres:
- 500 - 1400
- 500 - 1400
- 600 - 660
- 425
Features:
- Flexible interior layout
- Voltage - free contact
- Forced air distribution
Atex
The yellow ATEX application sticker in our different model ranges enables placement in environments with potential explosive atmospheres, and storage of items that can cause potential explosive atmospheres.
The BioLine range of biostorage cabinets provides you with full ATEX compliance - both inside and outside the storage chamber - at no extra change.
